BrandV-TEK
SKUDBC4A1

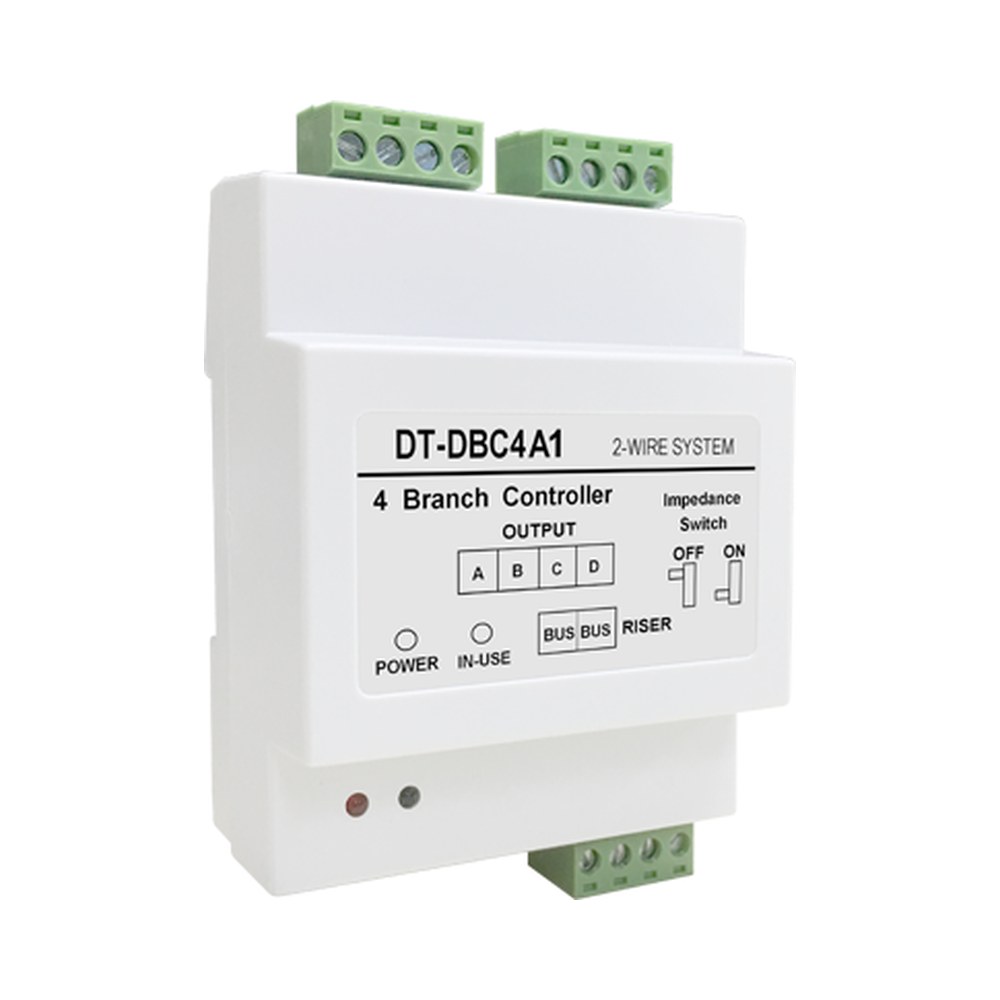

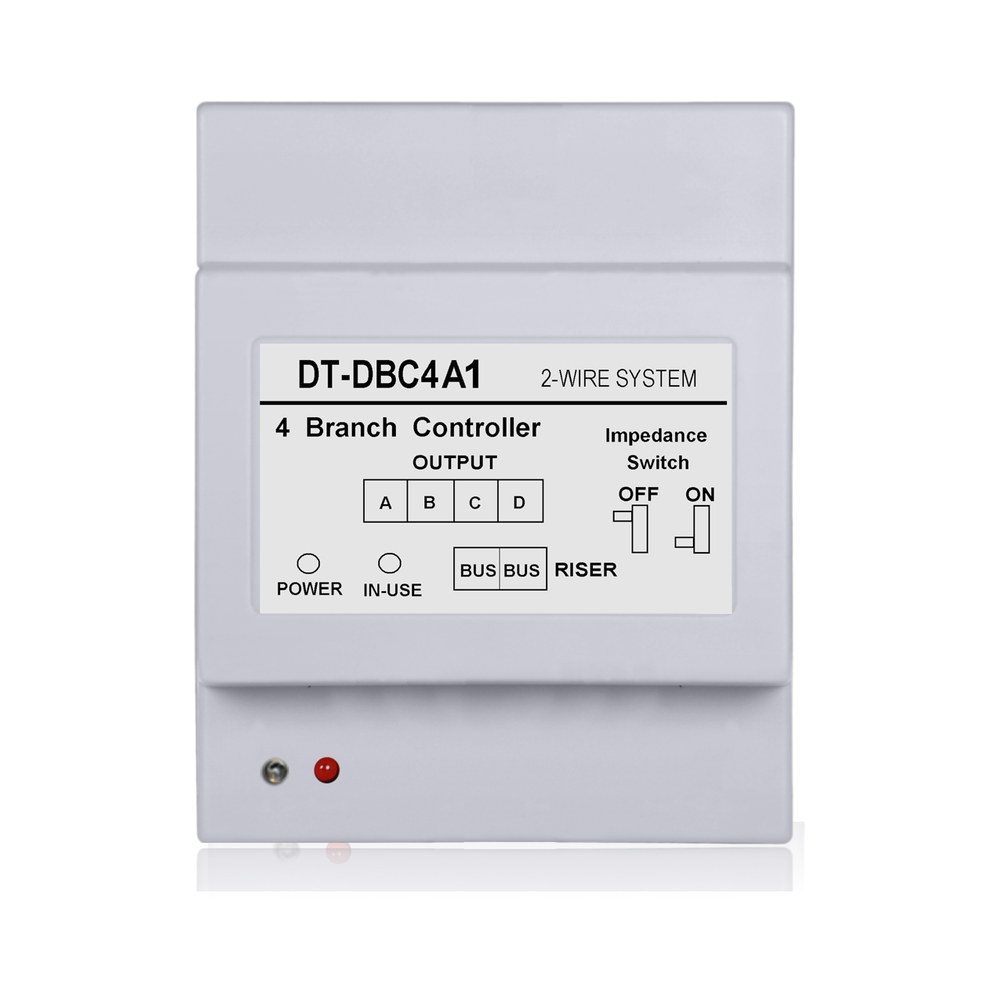

V-TEK DBC4A1 4Way Distributor

SKU: DBC4A1
✓ In stock

38,44 € incl. VATPrice incl. 19% VAT

  • Connects up to 4 monitors from one riser
  • Star topology with impedance matching
  • Power and in-use indicators
  • DIN-rail or wall mounting
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
  • Free shipping on orders over €100
  • Delivery in 1-2 working days across Cyprus
  • Professional installation on request
  • 24-month warranty

Outputs
4

System
2-Wire bus

Mounting
DIN / Wall

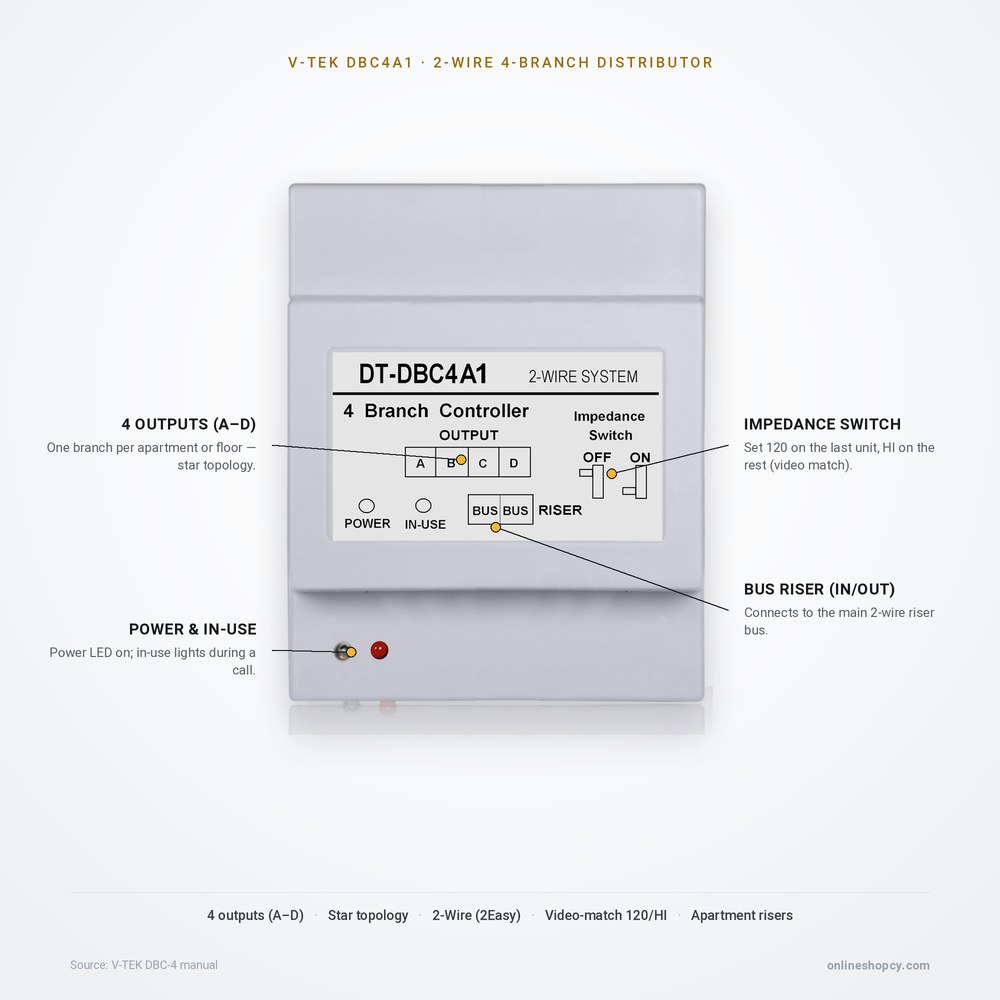

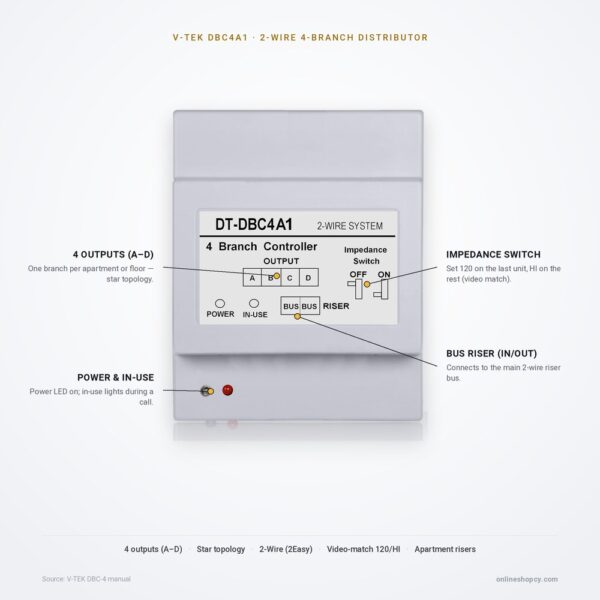

4-output distributor for the 2-Easy 2-wire system — connects up to four monitors in star topology from one riser, with impedance switch for correct video matching.

Specifications

Outputs 4 monitor branches (A–D) + trunk bus
Video match HI / 120 Ω impedance switch
Indicators Power · In-use LED
Mounting DIN rail or wall
Source: DT System Technical Guide (DBC-4)

Reviews

There are no reviews yet.

Be the first to review “V-TEK DBC4A1 4Way Distributor”

Your email address will not be published. Required fields are marked *

Two distributors

A DBC sits between the bus and the monitors. One output per monitor, or four in a star.

ModelOutputsPrice
V-TEK DBC2S 2Way DistributorV-TEK DBC2S 2Way Distributor2-way23,80 €View →
V-TEK DBC4S 4Way DistributorV-TEK DBC4A1 4Way DistributorYou are looking at this one4-way, star topology38,44 €—

Complete the set

The other parts of the same 2-wire system. Add whatever the job is missing.

Downloads

Manufacturer documentation for this product. Opens in a new tab.

DBC4 distributor — technical guidePDF · 247 KB
